8x8 networked stage box. 8 XMAC mic/line inputs and 8 XLR outputs. 16x8 AVB channels via 2 AVB XLR Ethernet ports. Control from StudioLive Series III mixers or Universal Control software. Optional Rackmount Kit available.
NSB 8.8 är en robust rackmonterbar stagebox designad för att utöka StudioLive Series III-mixers med 8 fjärrstyrda XMAX-mikrofon-/line-ingångar och 8 låsbara XLR-utgångar. Varje ingång har gainkompensation, vilket gör det möjligt för flera mixrar på samma nätverk att justera förförstärkarens nivåer lokalt för optimal gain-staging. Med två AVB-portar och låsbara XLR-Ethernet-jackor kan flera enheter kopplas samman via daisy-chaining. Den robusta stålkonstruktionen med handtag gör den idealisk för både scenbruk och rackmontering. NSB 8.8 kan styras via StudioLive-mixrar eller PreSonus Universal Control-programvara, vilket gör den till en flexibel lösning för både liveframträdanden och studiobruk.
_____
Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus Universal Control software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.
Gain compensation on every input
The NSB 8.8 can provide inputs for any StudioLive Series III digital mixer on an AVB network. NSB-series stage boxes have onboard DSP that provides gain compensation on every input so every mixer on the network can make gain adjustments relative to the level set on the master mixer. In this way, every mixer can adjust the preamp level locally for optimal gain staging.
A complete networked solution
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 8.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or multiple mixers on the same network.
FEATURES
- Rugged stage box enclosure with handles

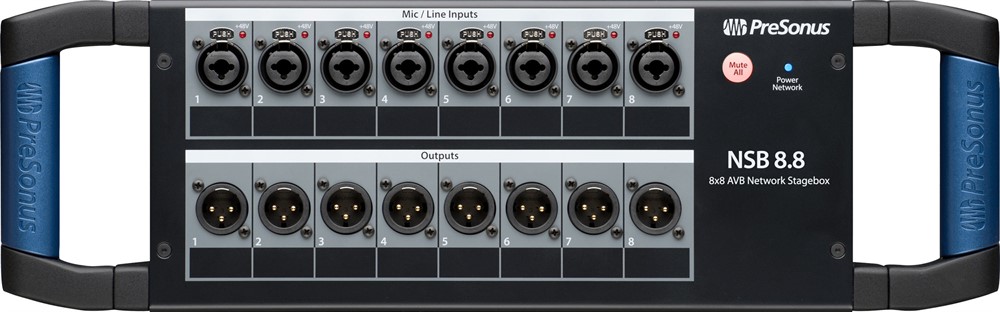

- 8 locking, mic/line inputs and 8 locking XLR outputs
- 8 remote-controllable XMAX preamps
- Gain compensation for shared inputs

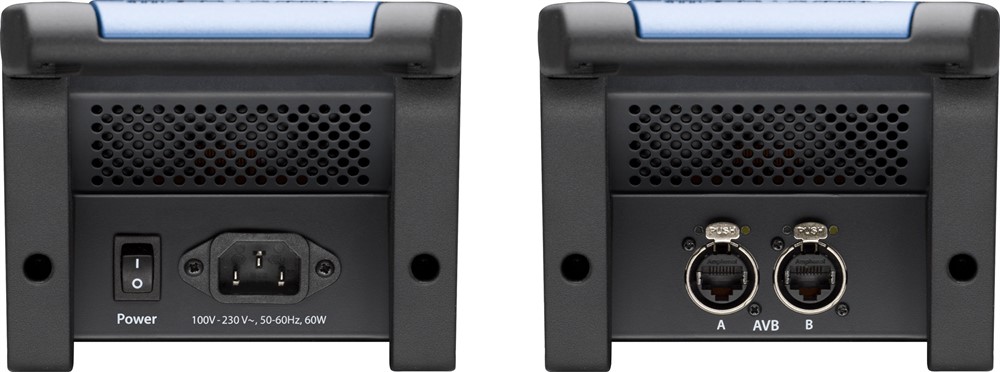

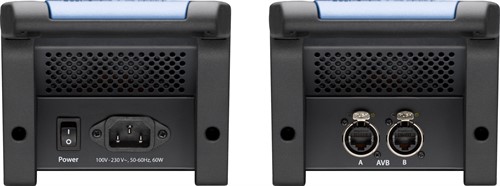

- 2 AVB ports with locking XLR Ethernet jacks
- 16x8 AVB (8 direct input channels + 8 gain compensated input channels)
- Easy setup and control from Series III mixers and free PreSonus Universal Control software

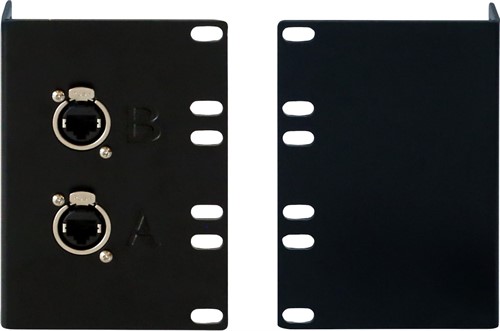

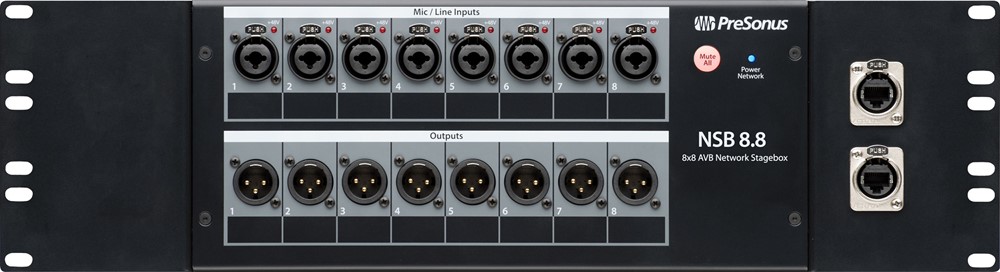

- Optional Rackmount Kit available
